Grow GM71 1d 2D USB/Uart Barcode Scanner Module Reader with Interchangeable M12 Lens

Place of Origin : China

Certification : CE

MOQ : 1

Packaging Details : Carton

Delivery Time : Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays

Payment Terms : T/T, PayPal

Supply Ability : 5000

Model NO. : GM71

Operating Current : 220mA(Max)

Reading Distance : 30 - 550mm

Interface : USB/Uart

Resolution : 1d: 3mil 2D: 5mil

Transport Package : Standard Export Carton Package

Specification : Black

Trademark : GROW

Origin : China

HS Code : 8473309000

Package Size : 13.00cm * 8.00cm * 9.00cm

Package Gross Weight : 0.200kg

Interface Type : Uart, USB

Scan Element Type : CMOS

Operating Voltage : 5V

Samples : US$ 15.5/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Payment Method : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

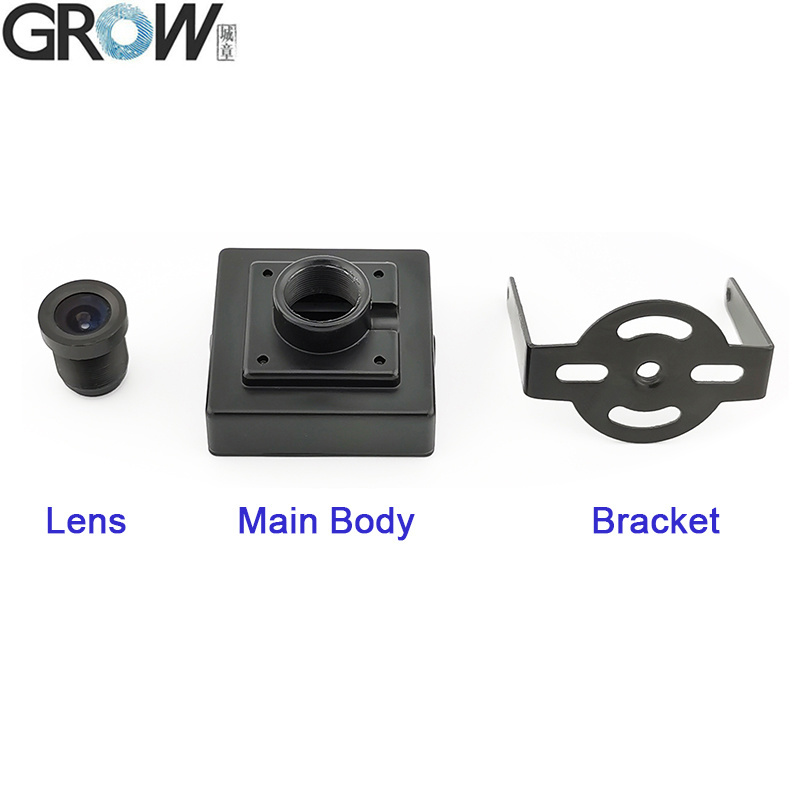

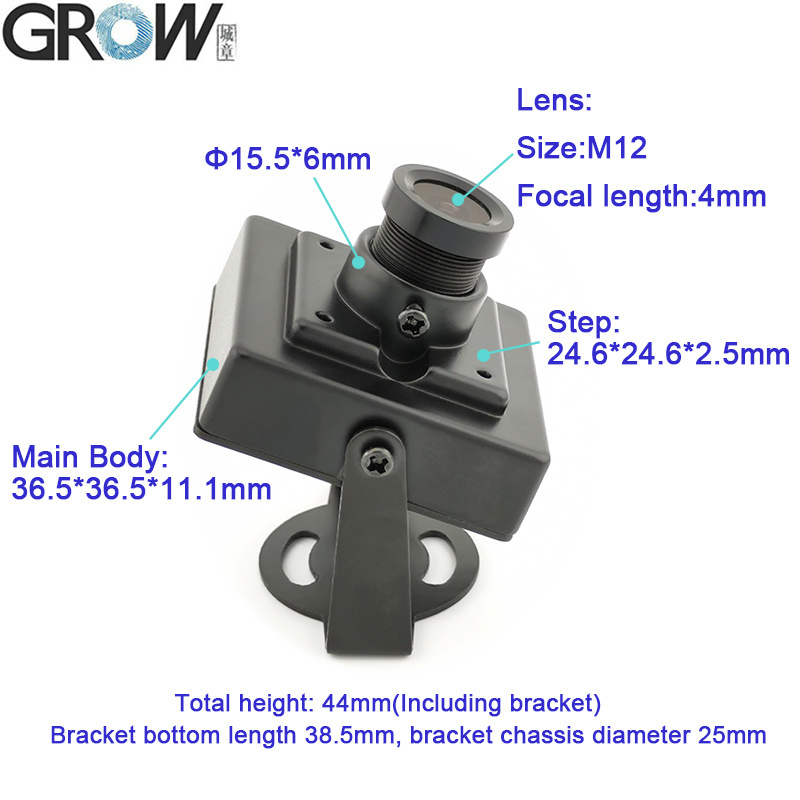

9. Free to change lens, lens size M12.

Specifications

Model	GM71
Scan Mode	640*480 CMOS
Type	Barcode Scanner
Decoding Ability	1D: EAN13,ISSN,ISBN,EAN8,UPCA,UPCE,Code128,Code39,Code93, CodeBar,Interleaved 2 of 5, ITF-14, ITF-6, Industrial 2 of 5, Matrix 2 of 5,Code11,MSI-Plessey,GS1-Databar (RSS) 2D: Micro QR,QR,Data Matrix,PDF417,Micro PDF417,Aztec Code
Interface	USB2.0 UART
Contrast	≥15%
Operating Voltage	5V
Operating Current	120mA
Standby Current	55mA
Weight	47g
Accuracy of reading	1D code ≥3mil, 2D code ≥5mil
Scan Angle	Roll: 360° Pitch: 65° Yaw: 65°
View Angle	67° (Horizontal) 53° (Vertical)
Reading Distance	25 - 250mm
Operating Temperature	-20 degrees to 60 degrees
Storage Temperature	-40 degrees to 70 degrees
Temperature Humidity	5% to 95% Relative humidity, Non-condensing

Files

·Provide User Manual

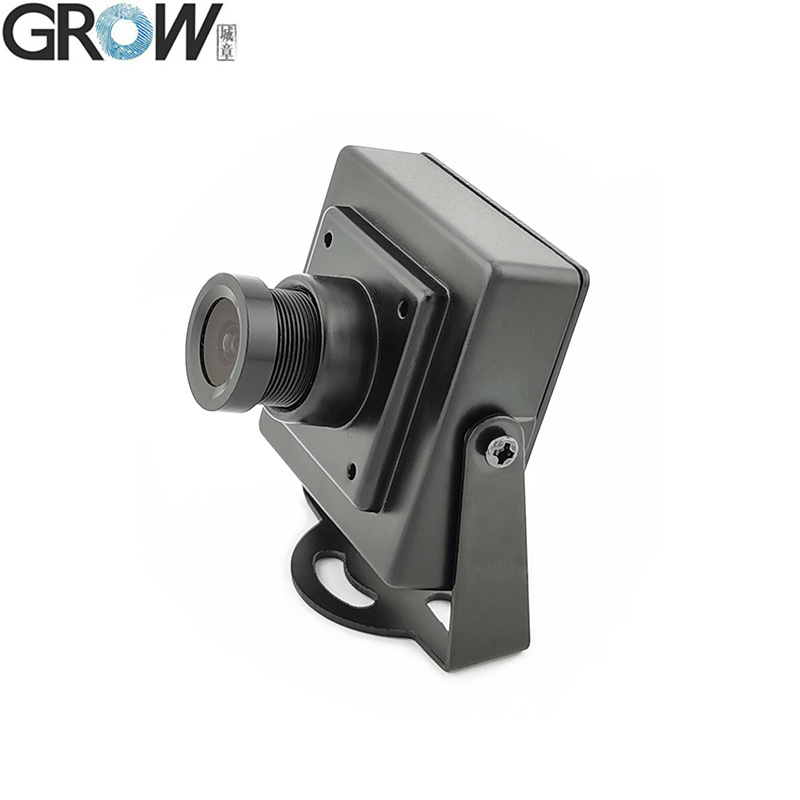

Grow GM71 1d 2D USB/Uart Barcode Scanner Module Reader with Interchangeable M12 Lens Images
