Grow GM73 Round Small Uab Uart 1d 2D Barcode Scanner Module

Place of Origin : China

Certification : CE

MOQ : 1

Packaging Details : Carton

Delivery Time : Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays

Payment Terms : T/T, PayPal

Supply Ability : 5000

Model NO. : GM73

Operating Current : 90mA

Interface : USB/Uart

Resolution : 6mil

Weight : 15g

Transport Package : Standard Export Carton Package

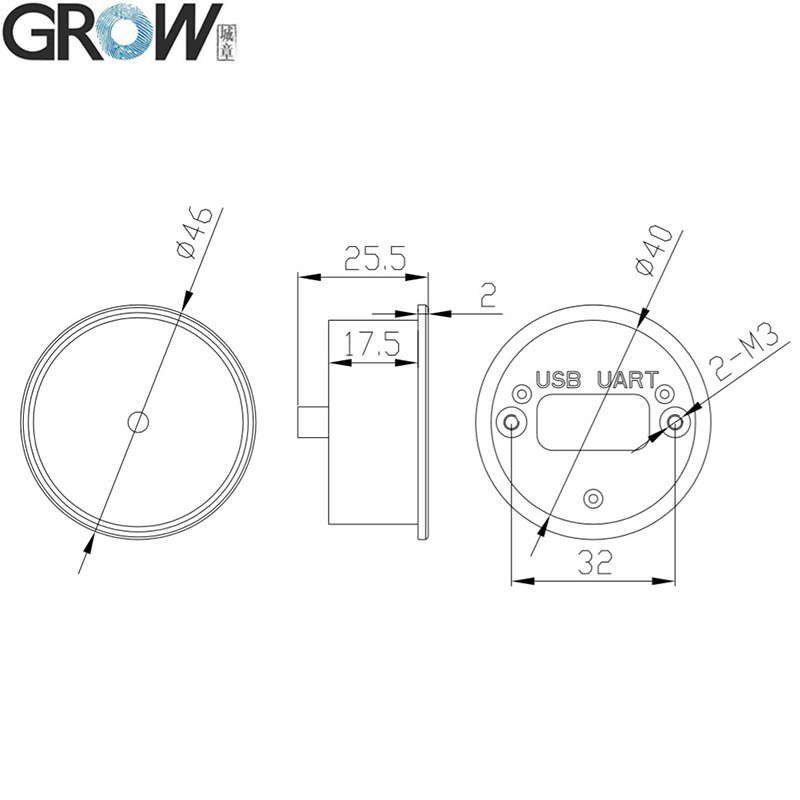

Specification : Diameter 46 (mm)

Trademark : GROW

Origin : China

HS Code : 8473309000

Interface Type : Uart, USB

Scan Element Type : CMOS

Operating Voltage : 5V

Samples : US$ 18/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Payment Method : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

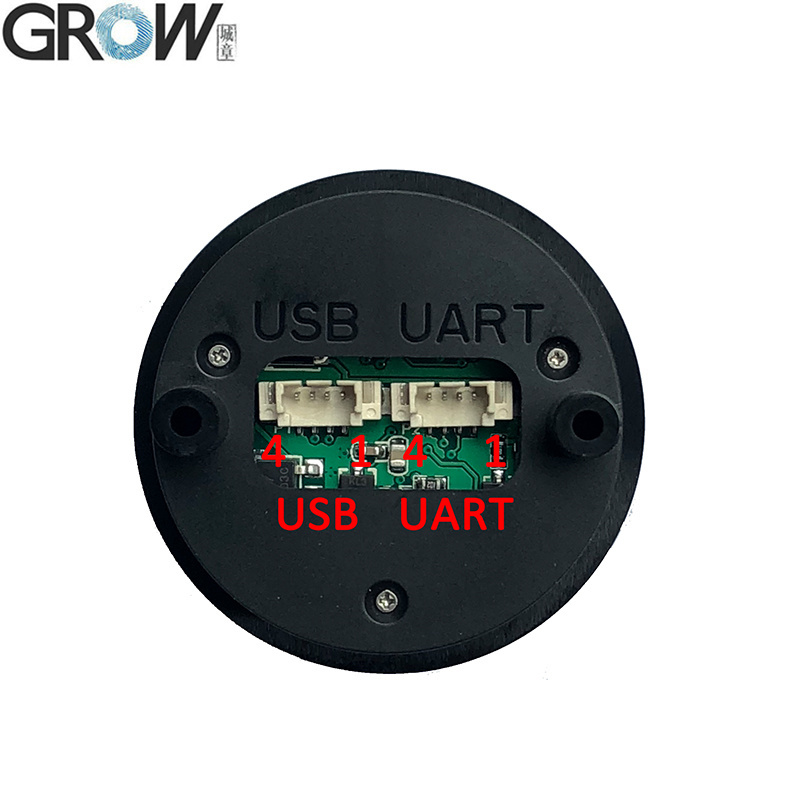

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

·Decoding Ability:

Codebar/ Code 11/ Code 39/Code 93/ UPC/EAN/Code 128/EAN128/ Interleaved 2 of 5/Matrix 2 of 5/ MSI Code/MSI Code/Industrial 2 of 5/ GS1 Databar/ QR code/Data Matrix/PDF417

Electrical Parameters:
·Interface: TTL-232/USB
·Voltage: DC+5V±5%
·Operating Current: <170mA
·Light: White light / Blue light
·Readable code: Codebar/ Code 11/ Code 39/Code 93/ UPC/EAN/Code 128/EAN128/ Interleaved 2 of 5/Matrix 2 of 5/ MSI Code/MSI Code/Industrial 2 of 5/ GS1 Databar/ QR code/Data Matrix/PDF417
·Reading Distance: 40-100mm
·Scan Angle: Roll: 360°, Yaw: 40°, Pitch: 45°
·Resolution: 640(Inclination)x 480(Elevation)
·Scanning angle: 57°(Inclination), 57°(Elevation)
·Weight: About 15g
·Operating Temperature: -20°C - 60°C
·Relative Humidity: 5%- 95% (Non-Condensing)

Files

·Provide User Manual

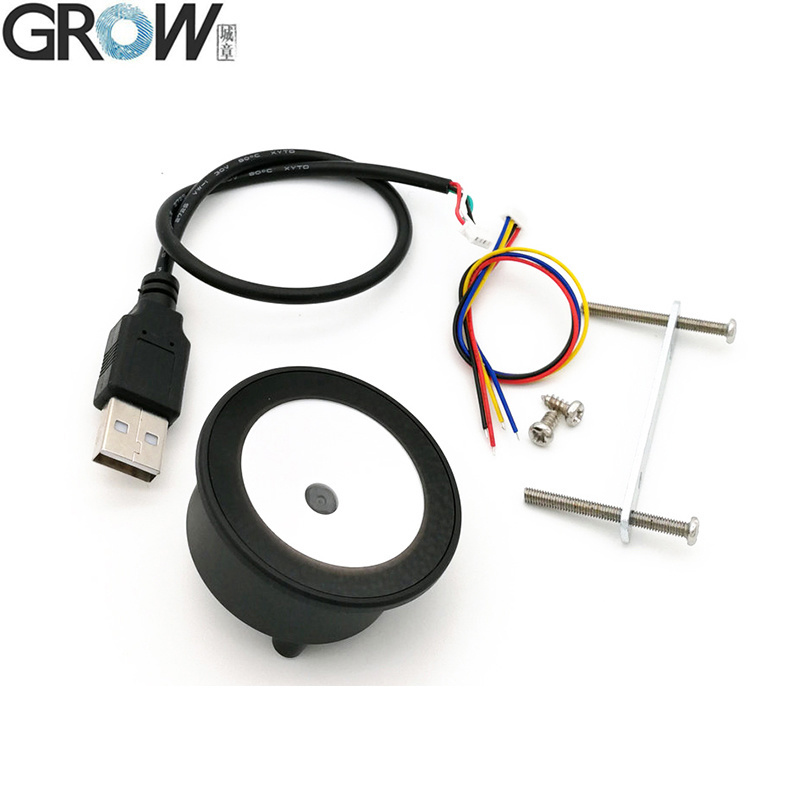

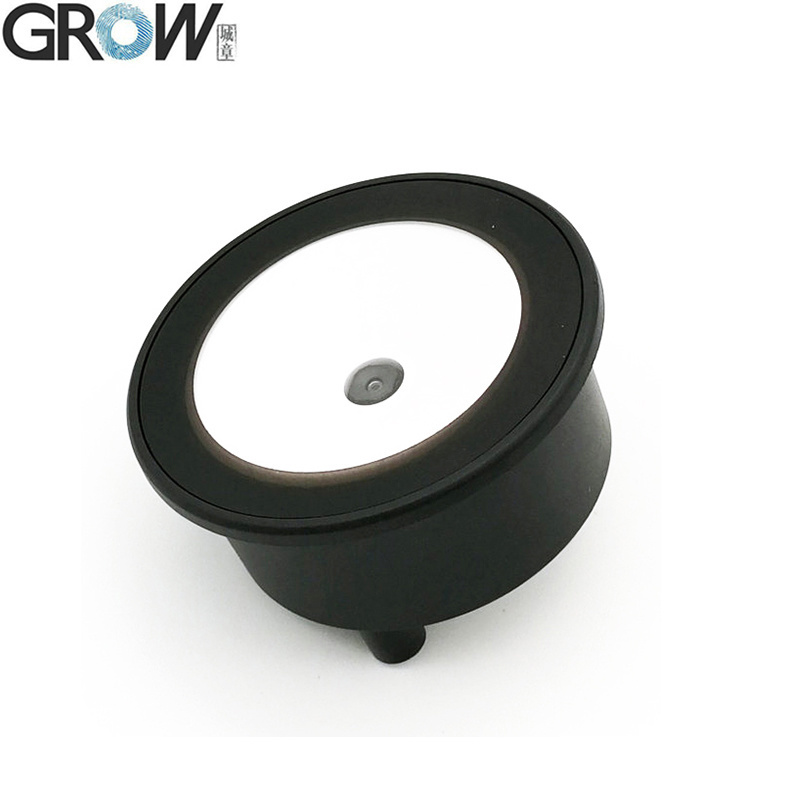

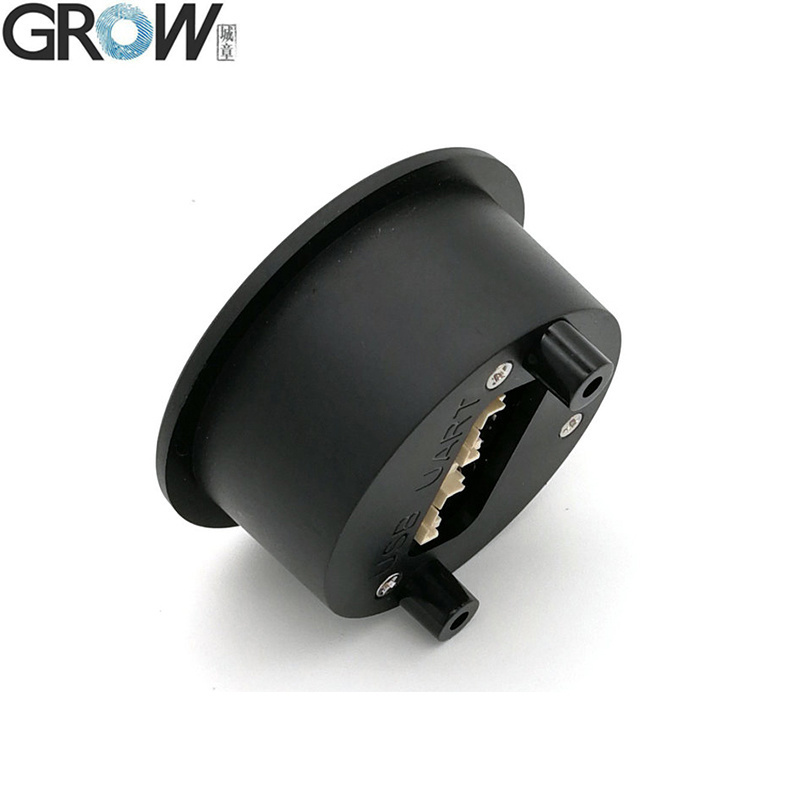

Grow GM73 Round Small Uab Uart 1d 2D Barcode Scanner Module Images
